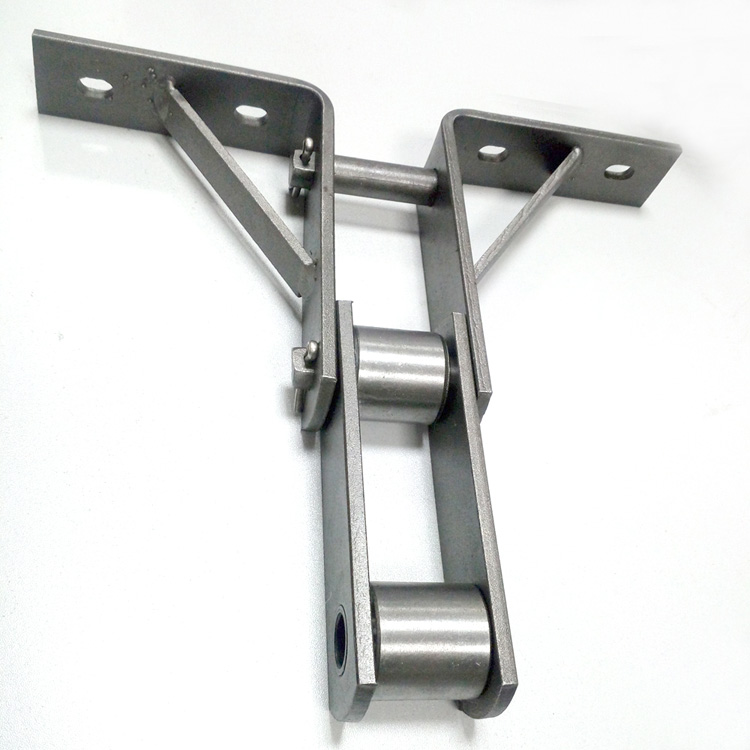

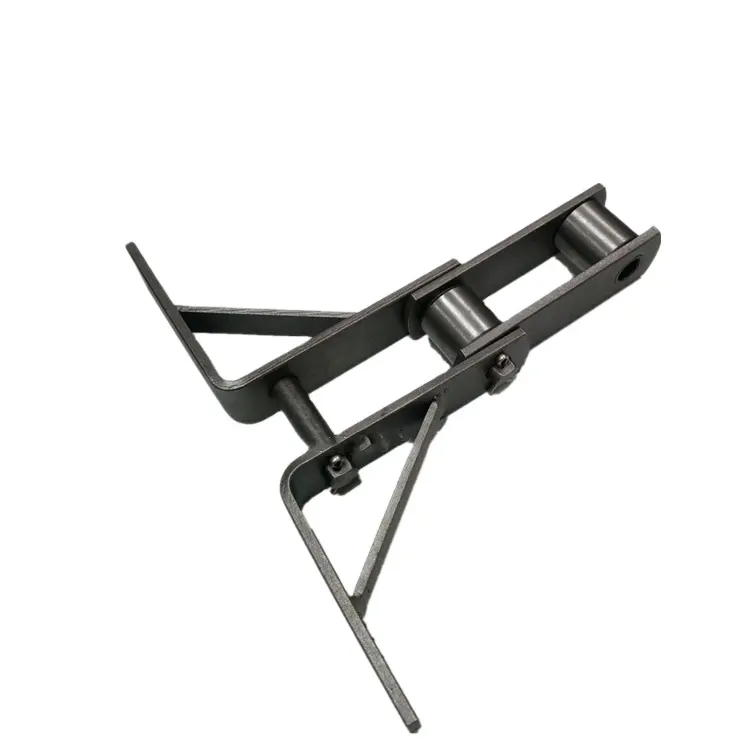

Bush roller chain (used in horizontal scraper conveyor)
Chains adopt high quality medium-carbon alloy steel, chain plate material is 40Mn, pin and roller material is 40Cr.
High quality material and good heat treatment guarantee excellent anti-shearing force and tensile strength during working and have good looking.
Model: GLF For TGSS flat scraper conveyor, install flat scrapper
Common specifications (Material: Carbon Steel, Stainless Steel)
| Type | Pitch p mm | between inner _plates b1mm | Bush Diameter d mm | Pin Diameter d1 mm | l Bush Diameter d2mm | Plate width Hmm | Plate Thickness mm | Flight Attachment(mm) | Rated strength KN | ||||
| Width L | Distance L1 | Distance L2 | diameter D1 | diameter D2 | |||||||||
| GLF66.5(6)D | 66.5 | 26.5 | 22.23 | 12.7 | 16.23 | 30 | 5/6 | 160 | 102 | / | 2-Φ9 | / | 140 |
| 230 | 95 | 195 | 2-Φ9 | 2-Φ9x14 | |||||||||
| 270 | 102 | 228 | |||||||||||
| GLF66.675(6)D | 66.675 | 26.5 | 22.23 | 12.7 | 16.23 | 30 | 5/6 | 182 | 90 | 150 | 2-Φ9 | 2-Φ9x14 | 140 |
| 215 | 95 | 195 | |||||||||||
| 295 | 95 | 195 | |||||||||||
| GLF10O(6) | 100 | 38.5 | 36 | 16.0 | 21.6 | 40 | 6 | 170 | 115 | / | 2-Φ9 | / | 180 |
| 225 | 95 | 195 | 2-Φ9x14 | ||||||||||
| 294 | 115 | 245 | |||||||||||
| 370 | 155 | 255 | 2-Φ9 | ||||||||||
| GLF125(6)D | 125 | 32.5 | 25 | 18 | 20.00 | 50 | 6 | 300 | 115 | 245 | 2-Φ9×14 | 200 | |
| 370 | 130 | 330 | |||||||||||
| GLF160(8)Dx385 | 160 | 36.5 | 356.0 | 17.8 | 24.50 | 50 | 8 | 385 | 130 | 330 | 2-Φ11 | 2-Φ11x15 | 220 |
| GLF200(8)D×467 | 200 | 42.5 | 40.0 | 20.0 | 30.00 | 60 | 8 | 467 | 160 | 420 | 2-Φ13 | 2-Φ13×17 | 250 |
| 81× | 66.27 | 26.99 | 23.02 | 11.1 | 16.23 | 28.6 | 4 | Welding attached plate, length and hole size customized Wood transport chain according to customer requirements | / | 107 | |||
| 81×H | 31.4 | 6/8 | / | 152 | |||||||||
| 81×HH | 8 | / | 191 | ||||||||||
Bush roller chain (used in horizontal scraper conveyor)
Chains adopt high quality medium-carbon alloy steel, chain plate material is 40Mn, pin and roller material is 40Cr.
High quality material and good heat treatment guarantee excellent anti-shearing force and tensile strength during working and have good looking.
Model: GLF For TGSS flat scraper conveyor, install flat scrapper
Common specifications (Material: Carbon Steel, Stainless Steel)
| Type | Pitch p mm | between inner _plates b1mm | Bush Diameter d mm | Pin Diameter d1 mm | l Bush Diameter d2mm | Plate width Hmm | Plate Thickness mm | Flight Attachment(mm) | Rated strength KN | ||||
| Width L | Distance L1 | Distance L2 | diameter D1 | diameter D2 | |||||||||
| GLF66.5(6)D | 66.5 | 26.5 | 22.23 | 12.7 | 16.23 | 30 | 5/6 | 160 | 102 | / | 2-Φ9 | / | 140 |
| 230 | 95 | 195 | 2-Φ9 | 2-Φ9x14 | |||||||||
| 270 | 102 | 228 | |||||||||||
| GLF66.675(6)D | 66.675 | 26.5 | 22.23 | 12.7 | 16.23 | 30 | 5/6 | 182 | 90 | 150 | 2-Φ9 | 2-Φ9x14 | 140 |
| 215 | 95 | 195 | |||||||||||
| 295 | 95 | 195 | |||||||||||
| GLF10O(6) | 100 | 38.5 | 36 | 16.0 | 21.6 | 40 | 6 | 170 | 115 | / | 2-Φ9 | / | 180 |
| 225 | 95 | 195 | 2-Φ9x14 | ||||||||||
| 294 | 115 | 245 | |||||||||||
| 370 | 155 | 255 | 2-Φ9 | ||||||||||
| GLF125(6)D | 125 | 32.5 | 25 | 18 | 20.00 | 50 | 6 | 300 | 115 | 245 | 2-Φ9×14 | 200 | |
| 370 | 130 | 330 | |||||||||||
| GLF160(8)Dx385 | 160 | 36.5 | 356.0 | 17.8 | 24.50 | 50 | 8 | 385 | 130 | 330 | 2-Φ11 | 2-Φ11x15 | 220 |
| GLF200(8)D×467 | 200 | 42.5 | 40.0 | 20.0 | 30.00 | 60 | 8 | 467 | 160 | 420 | 2-Φ13 | 2-Φ13×17 | 250 |
| 81× | 66.27 | 26.99 | 23.02 | 11.1 | 16.23 | 28.6 | 4 | Welding attached plate, length and hole size customized Wood transport chain according to customer requirements | / | 107 | |||
| 81×H | 31.4 | 6/8 | / | 152 | |||||||||
| 81×HH | 8 | / | 191 | ||||||||||
