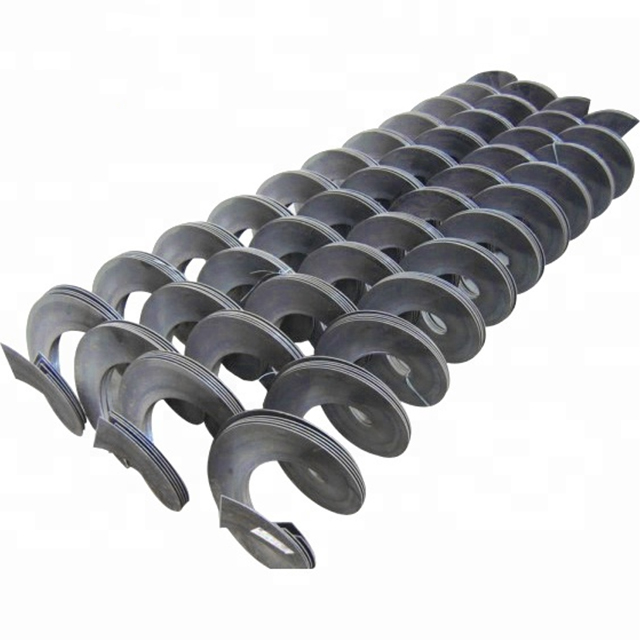

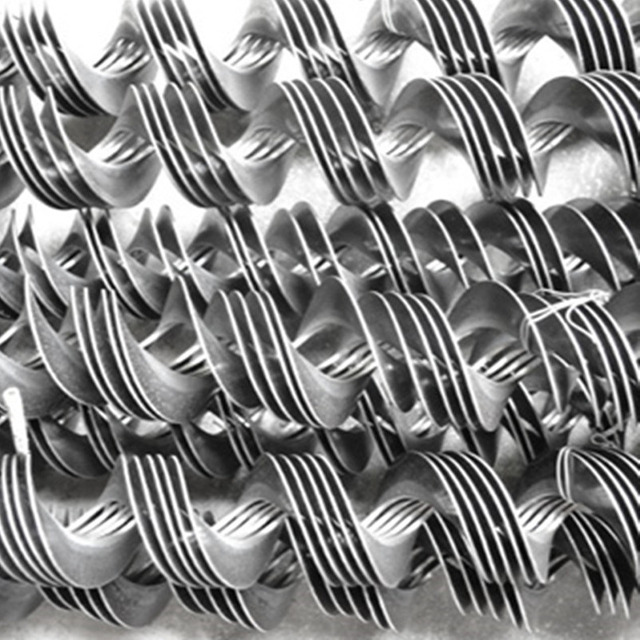

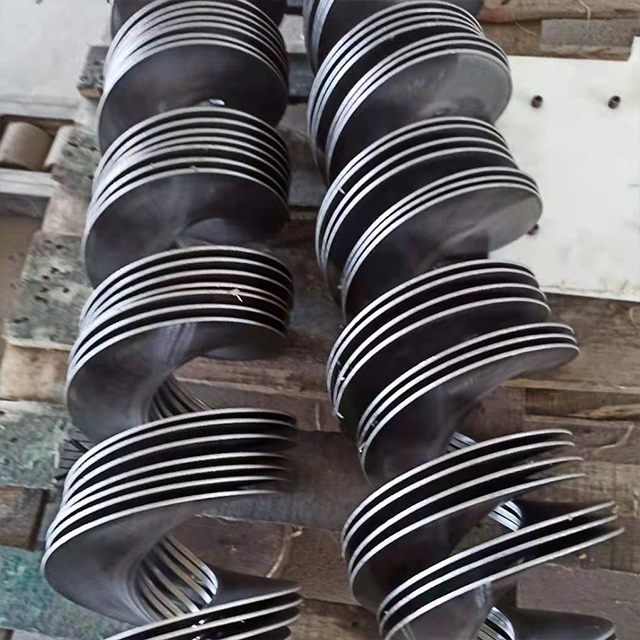

• The continuous cold rolling blade overcomes the shortcomings of the traditional screw blade production process, such as poor accuracy, difficult formation, large loss and low production efficiency.
• After forming, the blade surface is clean, the radial vertical degree is high, the dimension accuracy and the surface hardness are high, can effectively reduce the resistance of the spiral propulsion. Product rigidity, easy to weld and assemble and can be customized according to the length and diameter of customers.
Type | Pitch P(mm) | Max. Outer Diameter D(mm) | Min. Inner Diameter d(mm) | Band Thickness T(mm) | Max O.D./I.D. Rati |
LY125 | 100-125 | Ф125 | Ф30 | 3.5 | ≤4 |
LY160 | 120-160 | Ф160 | Ф42 | 3.5 | ≤4 |
LY200 | 160-200 | Ф200 | Ф48 | 3.5 | ≤4 |
LY250 | 200-250 | Ф250 | Ф60 | 3.5-5 | ≤4 |
LY320 | 250-320 | Ф320 | Ф76 | 3.5-5 | ≤4 |
LY400 | 320-400 | Ф400 | Ф108 | 3.5-5 | ≤4 |
LY500 | 400-500 | Ф500 | Ф133 | 3.5-5 | ≤4 |
Note: When the inner diameter of the customized specification is in the range of the minimum inner diameter +5mm, the maximum outer diameter of the customized specification cannot exceed 3 times of the inner diameter | |||||
