DQ Series Shallow Type Steel Bucket

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

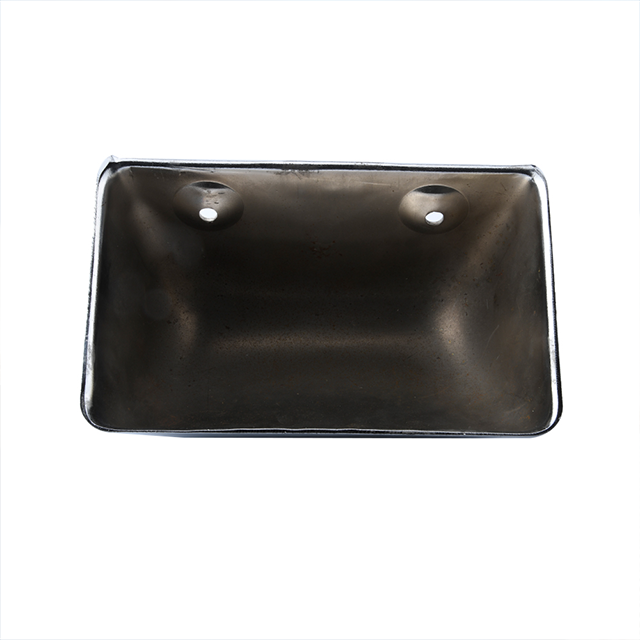

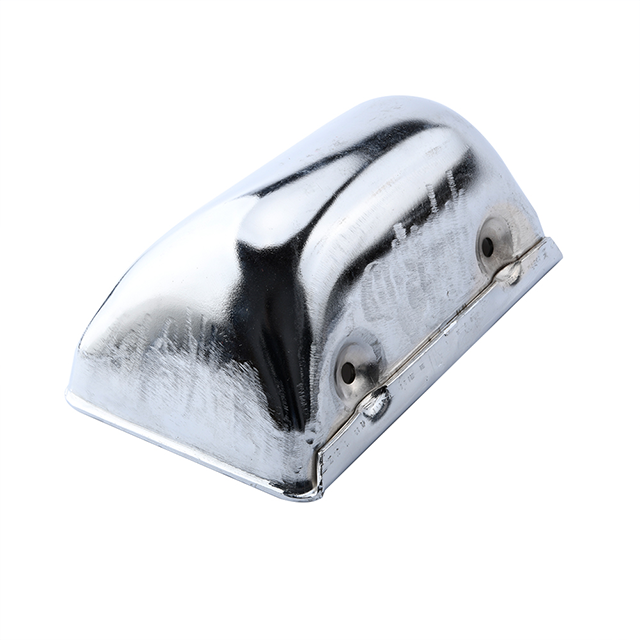

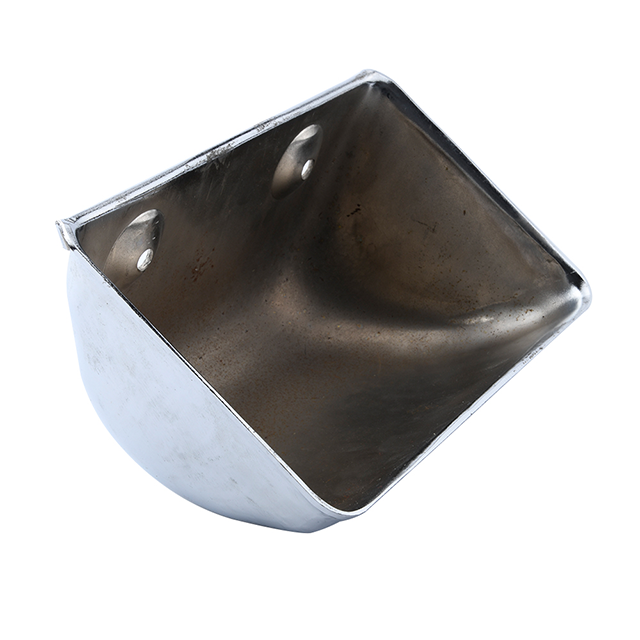

DQ Series Shallow type Steel Bucket

• Suitable for high-speed centrifugal discharge.

• Recommended minimum bucket distance is"C"+ 25mm size can be adjusted according to request of lifting capacity

• Suggest hoist speed 3.5 meters/seconds or less can adjust base on the pulley diameter size or throw food Angle.

• Recommended"(Z-Y)+5%"volume as available capacity of the engineering design.

Model

Length A

(mm)

Proj. B

(mm)

Depth C

(mm)

Center

E

(mm)

Number

of Holes

diameter

d

(mm)

Thickness

(mm)

Capacity

(X-Y)

(L)

DQ0807-1.5

90

75

48

50

2

7

1.5

0.21

DQ1009-1.5

100

90

58

50

2

7

1.5

0.29

DQ1109-1.5

110

90

60

60

2

7

1.5

0.31

DQ1309-1.5

130

90

58

60

2

7

1.5

0.4

DQ1311-1.5

136

112

60

60

2

7

1.5

0.62

DQ1312-1.5

138

125

60

60

2

7

1.5

0.68

DQ1409-1.5

140

90

58

60

2

7

1.5

0.48

DQ1411-1.5

140

112

60

60

2

7

1.5

0.63

DQ1511-1.5

155

113

62

80

2

7

1.5

0.69

DQ1612-1.5

166

125

65

90

2

7

1.5

0.88

DQ1613-1.5

166

130

68

90

2

7

1.5

1.03

DQ1812-1.5

186

128

80

90

2

9

1.5

1.06

DQ1813-1.5

188

130

80

90

2

9

1.5

1.09

DQ1814-1.5

183

140

98

90

2

9

1.5

1.23

DQ1914-1.5

190

142

88

90

2

9

1.5

1.36

DQ2014-1.5

203

142

90

90

2

9

1.5

164

DQ2313-1.5

239

130

75

120

2

9

1.5

1.52

DQ2314-1.5

233

142

95

120

2

9

1.5

1.75

DQ2316-1.5

236

162

100

120

2

9

1.5

1.52

DQ2316-2.0

238

162

100

120

2

9

2.0

1.55

DQ2417-2.0

240

170

109

120

2

9

2.0

2.32

DQ2614-2.0

265

140

88

150

2

9

2.0

2.32

DQ2616-2.0

260

162

90

150

2

9

2.0

1.63

DQ2813-1.5

288

130

85

100

3

9

1.5

1.88

DQ2814-2.0

283

142

85

100

3

9

2.0

1.9

DQ2816-2.0

286

168

115

100

3

9

2.0

2.77

DQ2817-2.0

288

178

100

100

3

9

2.0

3.18

DQ2818-2.0

290

182

115

100

3

9

2.0

3.42

DQ2824-2.0

285

240

148

100

3

9

2.0

5.09

DQ2916-2.0

290

168

115

100

3

9

2.0

2.84

DQ3018-2.0

308

182

140

100

3

9

2.0

4.26

DQ3121-2.0

315

220

130

100

3

11

2.0

5.15

DQ3216-2.0

320

160

100

110

3

11

2.0

3.28

DQ3321-2.0

336

212

135

120

3

11

2.0

4.15

DQ3325-2.0

340

255

130

120

3

11

2.0

6.41

DQ3518-2.0

358

180

110

120

3

11

2.0

4.16

DQ3621-2.0

358

220

125

90

4

11

2.0

6.61

DQ3823-2.0

380

230

125

90

4

9

2.0

5.93

DQ4423-2.5

445

233

148

90

5

9

2.5

7.02

DQ4621-2.5

460

220

125

90

5

11

2.5

8.38

DQ4626-2.5

460

260

195

95

5

11

2.5

7.58

DQ4723-2.5

475

233

148

95

5

11

2.5

7.49

DQ5626-2.5

560

260

153

105

5

11

2.5

11.34
