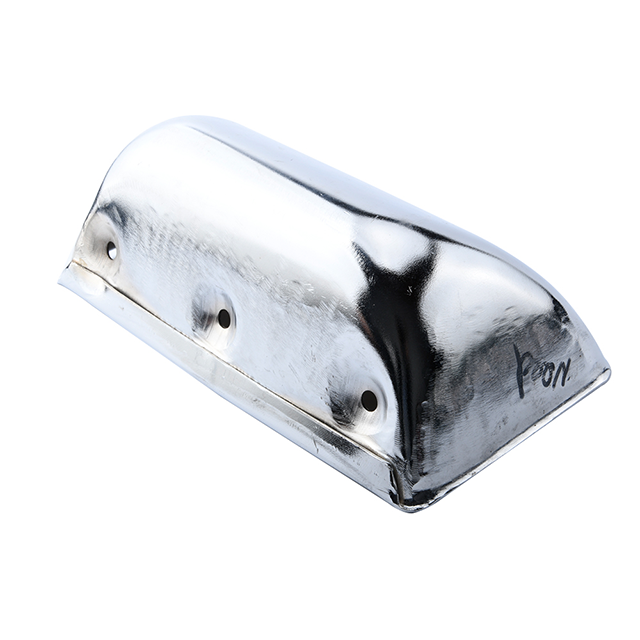

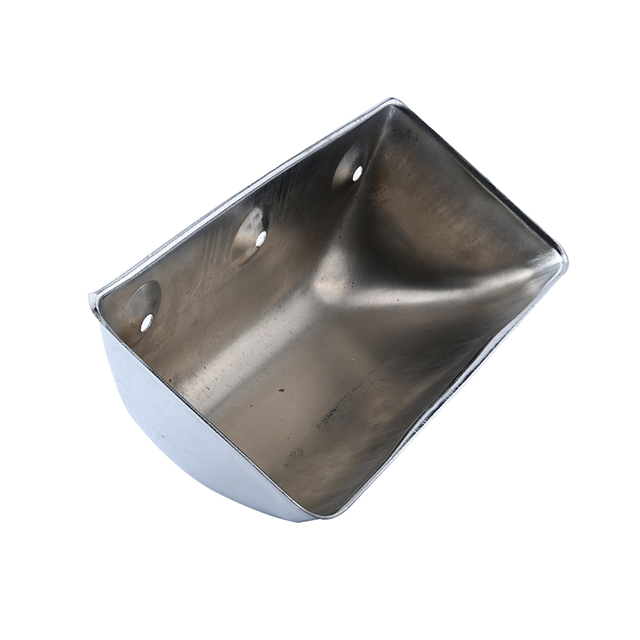

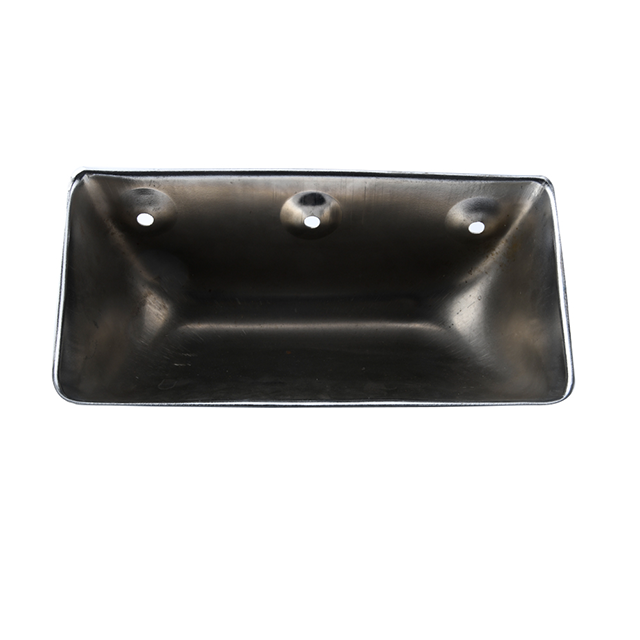

Whole stamping steel bucket
Our steel buckets use high quality steel and deep stretching manufacturing process.Whole stamping no seamless and welding, have more strength and abrasion resistance.
MATERIAL:carbon steel, stainless steel.
• Whole stamping steel bucket adopts deep drawing processing lead to higher overall strength.
• High temperature performance is outstanding, especially suitable for high temperature environment
• High surface hardness, suitable for conveying the very sharp material and large bulk material.
• Can mixed use with plastic bucket,attention to balance problem.
• It is suitable for conveying bulk materials.
 |  |
DS Series Deep TYPE Steel Bucket
• Suitable for mixed discharge or gravity discharge.
• Recommended minimum bucket distance is"C+25 mm size can be adjusted according to request of lifting capacity
• Suggest hoist speed 2.5 meters/seconds or less can adjust base on the pulley diameter size or throw food Angle.
• Recommended"(Z-Y)+10%"volume as available capacity of the engineering design.
Model | Length A (mm) | Proj. B (mm) | Depth C (mm) | Center E (mm) | Number of Holes | diameter d (mm) | Thickness (mm) | Capacity (X-Y) (L) |
DS0807-1.5 | 90 | 78 | 55 | 50 | 2 | 7 | 1.5 | 0.21 |
DS1009-1.5 | 100 | 90 | 65 | 50 | 2 | 7 | 1.5 | 0.34 |
DS1109-1.5 | 110 | 90 | 68 | 60 | 2 | 7 | 1.5 | 0.35 |
DS1214-1.5 | 120 | 140 | 115 | 60 | 2 | 7 | 1.5 | 0.60 |
DS1309-1.5 | 130 | 90 | 70 | 60 | 2 | 7 | 1.5 | 0.45 |
DS1311-1.5 | 139 | 112 | 85 | 60 | 2 | 7 | 1.5 | 0.65 |
DS1312-1.5 | 138 | 125 | 85 | 60 | 2 | 7 | 1.5 | 0.73 |
DS1409-1.5 | 140 | 90 | 70 | 60 | 2 | 7 | 1.5 | 0.55 |
DS1411-1.5 | 140 | 112 | 85 | 60 | 2 | 7 | 1.5 | 0.69 |
DS1511-1.5 | 155 | 113 | 90 | 80 | 2 | 7 | 1.5 | 0.94 |
DS1612-1.5 | 166 | 126 | 95 | 90 | 2 | 7 | 1.5 | 1.18 |
DS1613-1.5 | 166 | 135 | 95 | 90 | 2 | 7 | 1.5 | 1.21 |
DS1812-1.5 | 186 | 128 | 95 | 90 | 2 | 9 | 1.5 | 1.31 |
DS1813-1.5 | 188 | 130 | 95 | 90 | 2 | 9 | 1.5 | 1.33 |
DS1814-1.5 | 183 | 142 | 115 | 90 | 2 | 9 | 1.5 | 1.49 |
DS1914-1.5 | 190 | 142 | 110 | 90 | 2 | 9 | 1.5 | 1.62 |
DS2014-1.5 | 203 | 142 | 115 | 90 | 2 | 9 | 1.5 | 1.70 |
DS2313-1.5 | 238 | 130 | 105 | 120 | 2 | 9 | 1.5 | 1.76 |
Model | Length A (mm) | Proj. B (mm) | Depth C (mm) | Center E (mm) | Number of Holes | diameter d (mm) | Thickness (mm) | Capacity (X-Y) (L) |
DS2314-1.5 | 233 | 142 | 115 | 120 | 2 | 9 | 1.5 | 1.98 |
DS2316-1.5 | 236 | 162 | 125 | 120 | 2 | 9 | 1.5 | 1.52 |
DS2316-2.0 | 238 | 166 | 130 | 120 | 2 | 9 | 2.0 | 2.2 |
DS2417-2.0 | 240 | 170 | 109 | 120 | 2 | 9 | 2.0 | 2.32 |
DS2614-2.0 | 240 | 170 | 109 | 150 | 2 | 9 | 2.0 | 2.32 |
DS2616-2.0 | 260 | 162 | 125 | 80 | 3 | 9 | 2.0 | 2.81 |
DS2813-1.5 | 288 | 130 | 112 | 100 | 3 | 9 | 1.5 | 2.44 |
DS2814-2.0 | 283 | 142 | 115 | 100 | 3 | 9 | 2.0 | 2.29 |
DS2816-2.0 | 283 | 168 | 130 | 100 | 3 | 9 | 2.0 | 3.17 |
DS2817-2.0 | 288 | 178 | 125 | 100 | 3 | 9 | 2.0 | 3.91 |
DS2818-2.0 | 290 | 183 | 142 | 100 | 3 | 9 | 2.0 | 3.87 |
DS2823-2.0 | 285 | 230 | 168 | 100 | 3 | 9 | 2.0 | 5.47 |
DS2916-2.0 | 290 | 168 | 130 | 100 | 3 | 9 | 2.0 | 3.28 |
DS3114-2.0 | 305 | 143 | 115 | 100 | 3 | 9 | 2.0 | 2.59 |
DS3118-2.0 | 315 | 190 | 155 | 75 | 4 | 9 | 2.0 | 4.18 |
DS3121-2.0 | 315 | 220 | 160 | 100 | 3 | 11 | 2.0 | 5.8 |
DS3216-2.0 | 320 | 160 | 135 | 110 | 3 | 11 | 2.0 | 3.65 |
DS3225-2.0 | 318 | 245 | 160 | 100 | 3 | 11 | 2.0 | |
DS3518-2.0 | 358 | 180 | 145 | 120 | 3 | 11 | 2.0 | 4.16 |
DS3621-2.5 | 358 | 220 | 160 | 90 | 4 | 11 | 2.5 | 7.14 |
DS3823-2.0 | 385 | 230 | 163 | 90 | 4 | 9 | 2 | 5.93 |
DS4118-2.5 | 415 | 190 | 145 | 95 | 4 | 11 | 2.5 | 6.45 |
DS4121-2.5 | 415 | 220 | 175 | 95 | 4 | 11 | 2.5 | 7.86 |
DS4621-2.5 | 460 | 220 | 160 | 90 | 5 | 11 | 2.5 | 8.84 |
DS4723-2.5 | 475 | 233 | 160 | 95 | 5 | 11 | 2.5 | 7.82 |
DS5121-2.5 | 518 | 220 | 160 | 100 | 5 | 11 | 2.5 | 10.18 |
DS5121-3.0 | 518 | 220 | 160 | 100 | 5 | 11 | 3.0 | 10.18 |
DS5626-2.5 | 560 | 260 | 175 | 105 | 5 | 11 | 2.5 | 11.9 |
