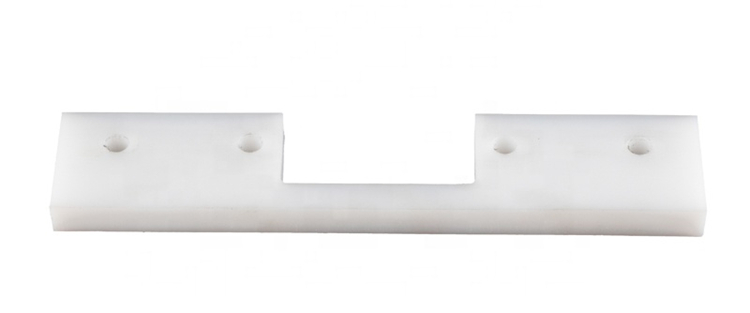

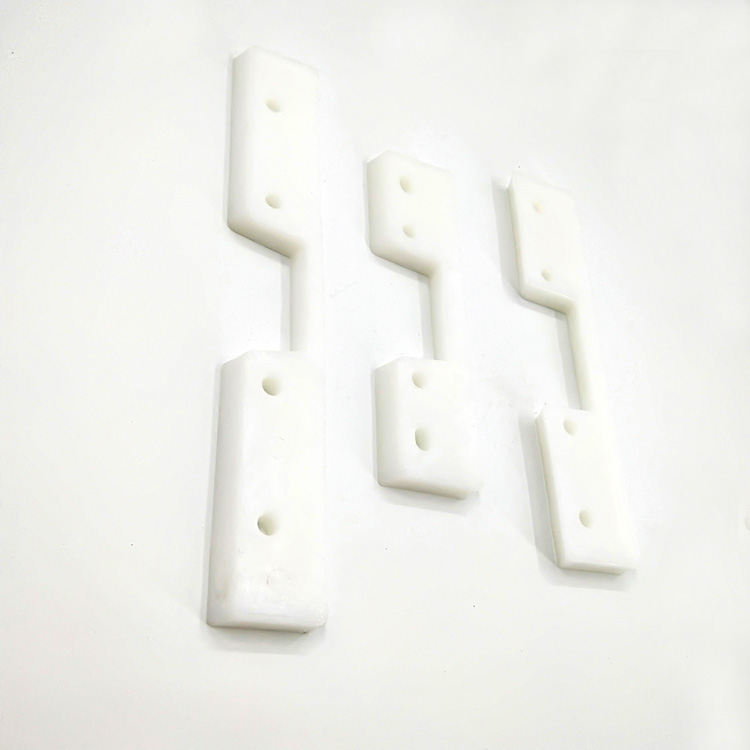

BF type applicable to Flat scraper
Type | L (mm) | L1 (mm) | L2 (mm) | T (mm) | H (mm) | H (mm) | E1 (mm) | E2 (mm) | D (mm) | d (mm) |
BF145x45 | 145 | 75 | 60 | 14 | 45 | 33 | 102 | / | 19 | 9 |
BF184x45 | 184 | 75 | 60 | 14 | 45 | 33 | 102 | / | 19 | 9 |
BF194x49 | 194 | 72 | 60 | 14 | 49 | 36 | 90 | 150 | 17 | 9 |
BF240x49 | 240 | 74 | 72 | 14 | 49 | 3 | 95 | 195 | 17 | 9 |
BF284x45 | 284 | 75 | 60 | 14 | 45 | 3 | 102 | 228 | 19 | 9 |
BF305x45 | 305 | 75 | 60 | 14 | 45 | 3 | 102 | 228 | 19 | 9 |
BF305x50 | 305 | 90 | 60 | 14 | 50 | 35 | 115 | 245 | 15 | 9 |
BF305x55 | 305 | 70 | 65 | 14 | 55 | 37 | 95 | 195 | 22 | 9 |
BF380x60 | 380 | 70 | 65 | 15 | 60 | 45 | 155 | 255 | 25 | 9 |
BF380x90 | 380 | 92 | 70 | 15 | 90 | 70 | 155 | 255 | 44 | 9 |
