The drag conveyor flights are the key components that come into direct contact with the materials being transported. They are made from high-quality materials, such as stainless steel, carbon steel, or high-strength polymers, depending on the specific application requirements. The flights are shaped and sized to optimize the conveying process, with a design that allows for effective scooping and transporting of materials.
The edges of the flights are carefully finished to prevent any damage to the materials or the conveyor belt. Some flights may have a serrated or textured surface to enhance the grip on the materials, especially for loose or granular substances. The flights are securely attached to the conveyor belt or chain using advanced fastening techniques, ensuring that they remain in place during operation.
In addition to the flights, our Drag Conveyor Flight Components also include other essential parts such as the conveyor belt or chain, sprockets, and guides. The conveyor belt or chain is made from durable materials that can withstand the tension and movement of the conveyor system. The sprockets are precision-machined to ensure a smooth engagement with the belt or chain, and the guides are used to keep the flights and the belt or chain in the correct position, preventing any misalignment or slippage.
1. High-Quality Materials: Our drag conveyor flights are made from top-grade materials that offer excellent strength, durability, and corrosion resistance. The choice of materials depends on the specific application, ensuring that the flights can handle the materials being transported and the operating environment.
2. Optimized Flight Design: The design of the flights is optimized for efficient material handling. The shape and size of the flights are carefully engineered to maximize the volume of material they can carry while still allowing for easy movement along the conveyor. The finished edges and textured surfaces, where applicable, further enhance the performance of the flights.
3. Secure Attachment: The flights are securely attached to the conveyor belt or chain using reliable fastening techniques. This ensures that the flights remain in place during operation, even under heavy loads and high speeds, reducing the risk of any operational issues.
4. Smooth Operation: The combination of the conveyor belt or chain, sprockets, and guides in our Drag Conveyor Flight Components ensures a smooth and efficient operation. The precision-machined sprockets and the properly aligned guides prevent any slippage or misalignment, resulting in a consistent and reliable material flow.
5. Customization Options: We offer a range of customization options for our Drag Conveyor Flight Components to meet the specific needs of our customers. Whether it's a special size, shape, or material requirement, our team of experts can work with you to develop a solution that fits your application perfectly.
1. Mining and Quarrying: In the mining and quarrying industries, drag conveyor systems are used to transport ores, rocks, and other mined materials. Our Drag Conveyor Flight Components are ideal for these applications, as they can withstand the heavy loads and abrasive nature of the materials. The high-quality materials and robust design of the flights ensure the reliable operation of the conveyor systems in these harsh environments.
2. Power Generation: In power plants, drag conveyor systems are used to transport coal, ash, and other materials. Our components can handle the large volumes of materials and the high temperatures associated with power plant operations. The corrosion-resistant features of our components are particularly important in power plants, where exposure to moisture and chemicals is common.
3. Food and Beverage Processing: In the food and beverage processing industry, drag conveyor systems are used to transport raw materials, semi-finished products, and finished goods. Our Drag Conveyor Flight Components can be customized to meet the strict hygiene standards of this industry. The use of food-grade materials and the smooth surface finish of the flights ensure that the products being transported remain safe and uncontaminated.
4. Automotive Manufacturing: In the automotive manufacturing industry, drag conveyor systems are used to transport automotive parts and components during the production process. Our components are designed to be precise and reliable, ensuring the smooth movement of parts and reducing the risk of damage. The easy maintenance features of our components also help to minimize the downtime of the production line.

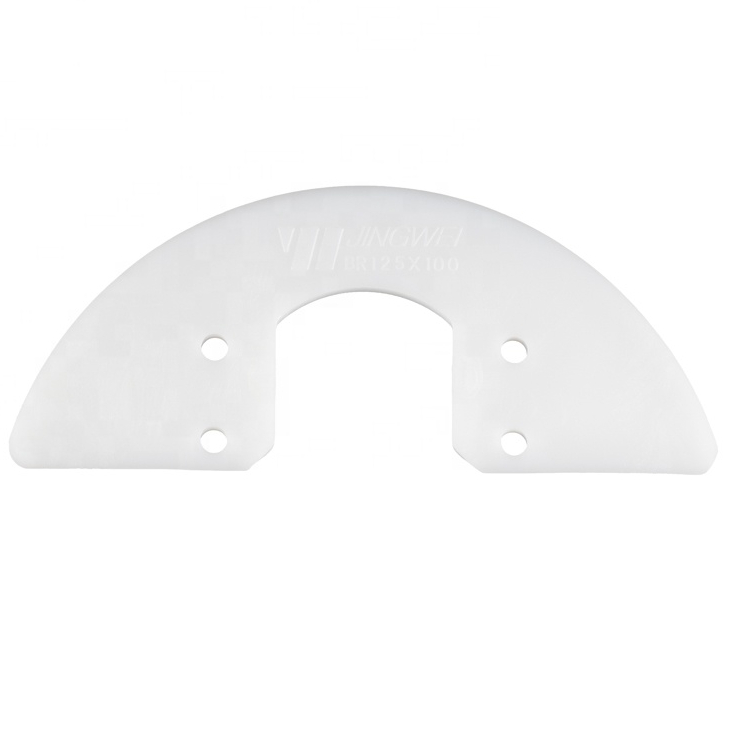

BR series applicable to U type scraper conveyor
(Self-cleaning scraper conveyor).
It can effectively reduce the wear of the chain of the scraper conveyor.
Low noise when chain is running.
It can significantly reduce the damage of material conveying.
| Type | l (mm) | L1 (mm) | T (mm) | H (mm) | h (mm) | h1 (mm) | R (mm) | E (mm) | F (mm) | D (mm) | d (mm) | Remark |
| BR100x74 | 180 | 55 | 10 | 74 | 43 | 43 | 100 | 102 | 32 | 12 | 9 | length and hole size customized |
| BR100x90 | 195 | 60 | 10 | 90 | 57 | 45 | 100 | 102 | 32 | 14 | 9 | |
| BR122x90 | 228 | 60 | 10 | 90 | 52 | 40 | 122 | 102 | 32 | 14 | 9 | |
| BR125x100 | 238 | 60 | 10 | 100 | 63 | 52 | 125 | 102 | 32 | 11 | 9 | |
| BR158x110 | 290 | 60 | 14 | 110 | 70 | 55 | 158 | 102 | 32 | 21 | 9 |
