Supply characteristics
length and width can be customized.
Drill hole service can be provided to make install and usage easy.

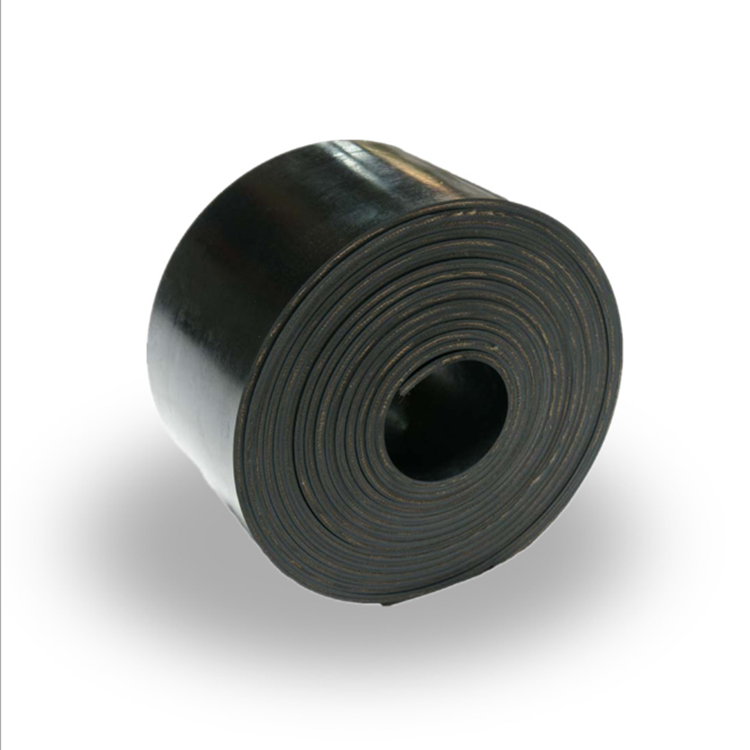

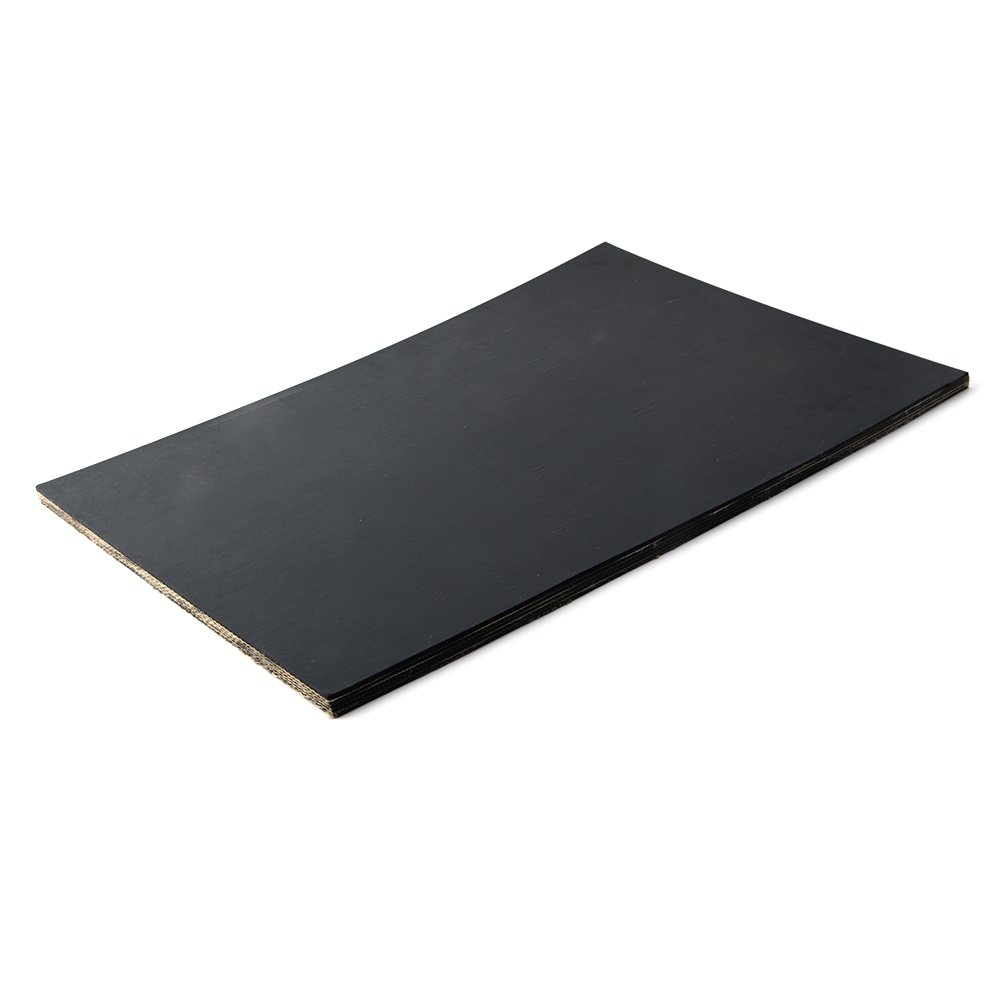

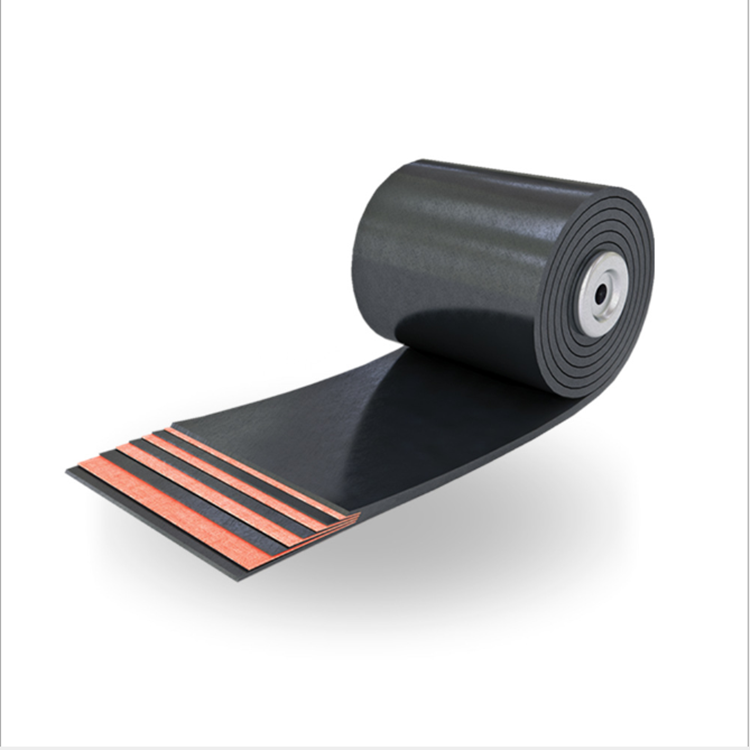

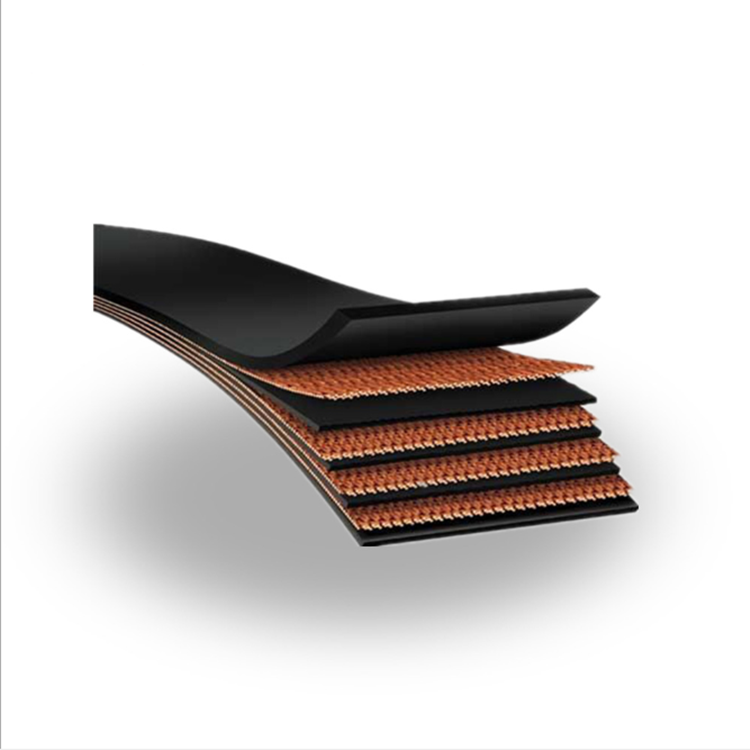

EP rubber elevator belt,the frame material is synthetic fiber impregnated canvas.Low shrinkage polyester is used in warp and weft direction,and add a layer of wear-resistant canvas on the contact surface between the lifting belt and the head wheel.It is a high performance belt suitable for food and food processing industry.
Mainly apply to normal temperature,no wet and corrosion environment.Usually for small bulk granular materials of non-oleaginous or non-biological additives.
Elevator belt width ≥500mm and the height ≥35 meters.Enhanced round edge elevator belt can be customized according to the intensity request.
According to the work condition,heat-resistant,anti-corrosion and anti-static elevator belt can be customized.
In order to improve the transmission efficiency,reduce abnormal wear of the belt,we recommended to use pulley with rubber cover.
Overall Specifications
Type | Carcass structure | Tensile Strength （N/mm) | Ambient temperature（℃） | Elongation @ 10% Tensile Strength（%) | temperature resistance | Cold resistance | oil resistance | inflaming retarding |
600YP | 3EP+1CC | 600 | -20～+70 | ≤1.6 | ||||
800YP | 4EP+1CC | 800 | ||||||
1000YP | 5EP+1CC | 1000 |
Cover Rubber Properties
Items | Index Value | Items | Index Value |
Carcass Ply to Carcass Ply | 4.5(Mp) | abrasion loss | ≤150（mm3） |
Cover to Carcass Ply | 3.5 (Mp) | Hardness | 60-65(Shore A) |
Tensile Strength | ≥18（Mp） | Elongation @ Break | ≥420（%） |
Friction coefficient | 0.75 | Acid Properties | 20（%） |
Friction coefficient | ＞1 | Alkali Properties | 5.2（%） |
