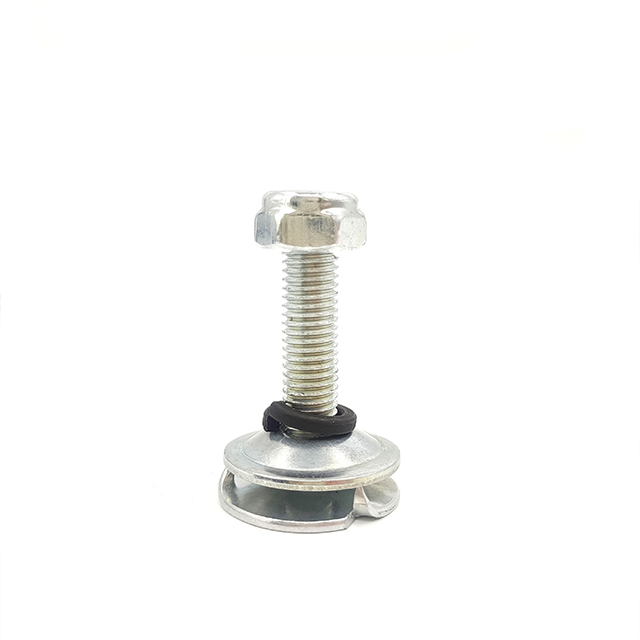

Fang Bolt
Tolerance quality is 6g,mechanical properties grade is greater than 4.8-5.6.Surface treatment is galvanized.
Applied to lift heavy capacity materials and can be used in highline speed.It is suitable for plastic bucket and steel bucket.
Especially for install big capacity bucket or big convexity bucket.Italso can borne heavy impact load during the operation of the equipment.
 |
General & Dimension(Material: Carbon Steel-Zinc Plated, Stainless Steel)
Size | D mm | D mm | L mm | L1 mm | Quantity of Carton |
M6x25 | M6 | 22 | 25 | 20 | 2000 |
M6x30 | M6 | 22 | 30 | 25 | 1500 |
M6x38 | M6 | 22 | 38 | 32 | 1500 |
M8x30 | M8 | 27 | 30 | 22 | 1000 |
M8x35 | M8 | 27 | 35 | 27 | 1000 |
M8x42 | M8 | 27 | 42 | 34 | 1000 |
M8x45 | M8 | 27 | 45 | 37 | 1000 |
M10x35 | M10 | 32 | 35 | 25 | 600 |
M10x45 | M10 | 32 | 45 | 35 | 600 |
M10x50 | M10 | 32 | 50 | 40 | 600 |
Example screw specification: M6*25P, M8*30S,M8*35Y, M10*45WS
