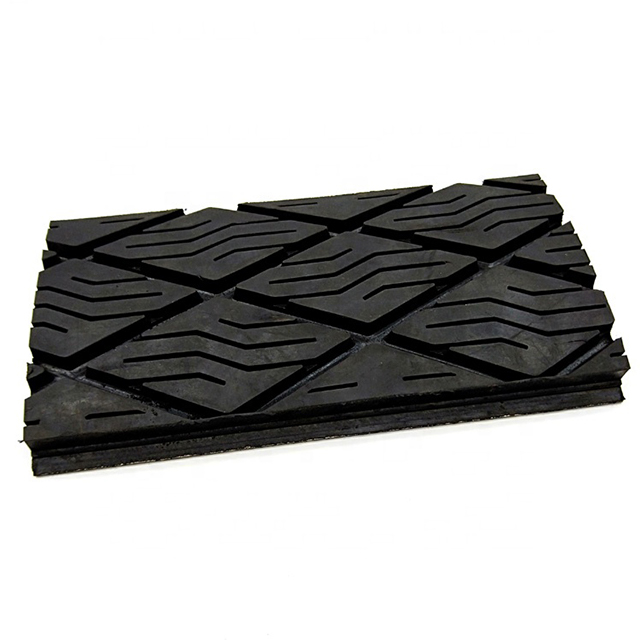

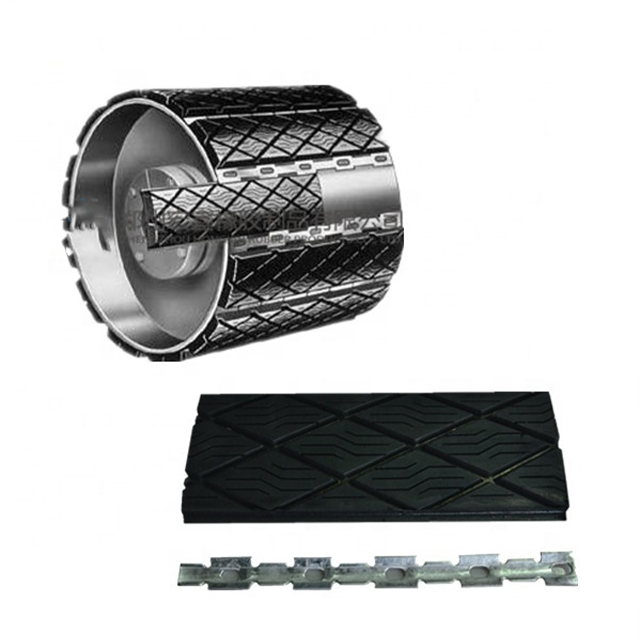

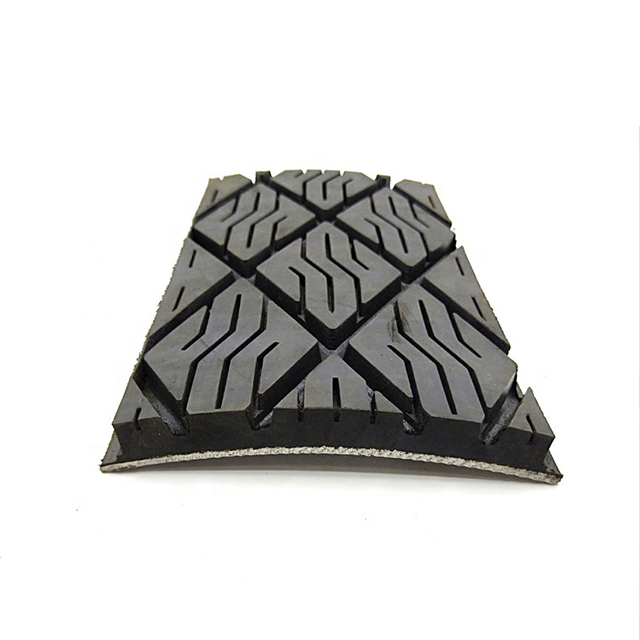

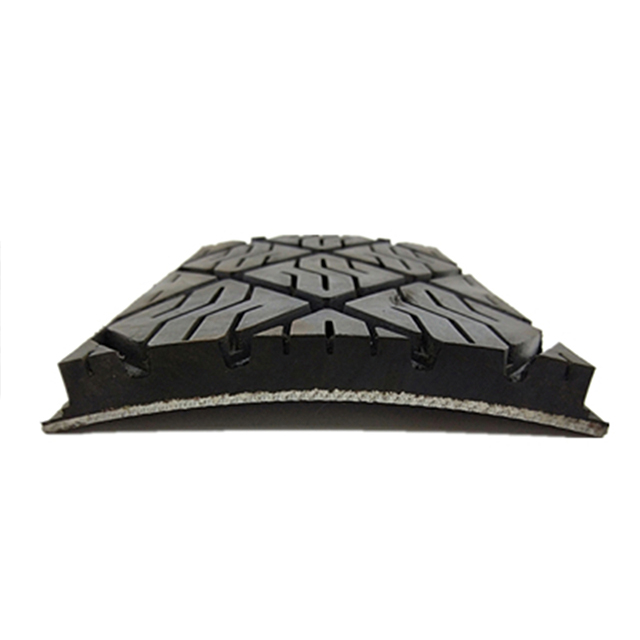

Pulley Lagging
 | ||
| Rubber type | polyurethane(PU) type | section |
Reduce the replacement frequency,fast repair speed,do not need to remove the head pulley,pull out the old insert board,change the new insert board, reduce the time of the maintenance and use costs.
Use high elasticity,high wear-resisting rubber raw materials have a higher wear resistance
Wear-resisting layer adopts the special groove structure,increased coefficient of elevator belt and the head pulley,higher attached strength prevent the pulley slip.
Significantly reduce the cost of maintenance and replacement frequency,reduce the labor intensity.
Item | Length （mm） | Width （mm） | Thickness （mm） | Rubber cover Shore | Wear Resistance ≤mm3 |
Rubber type | 1830 | 135 | 15 | 70±5 | 100 |
PU Type | 1830 | 135 |
Install method: Welding Installation, Bolt Installation
 |  |  |  |  |  |
| Step 1 | Step 2 | Step3 | Step 4 | Step 5 | Step6 |
