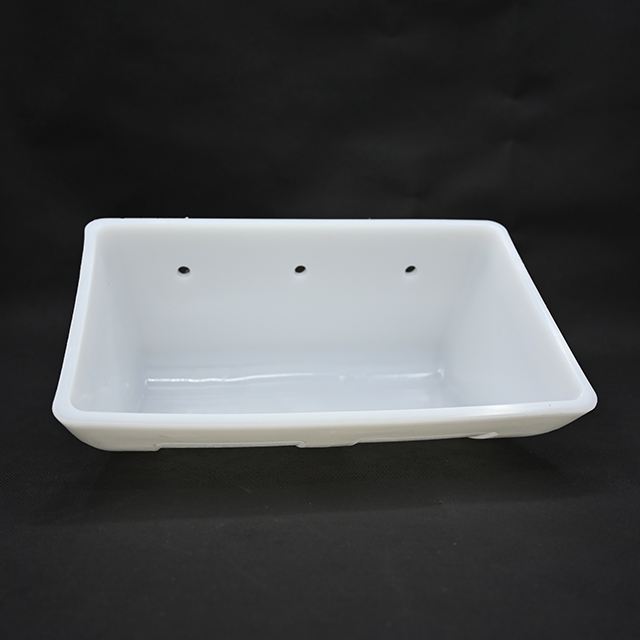

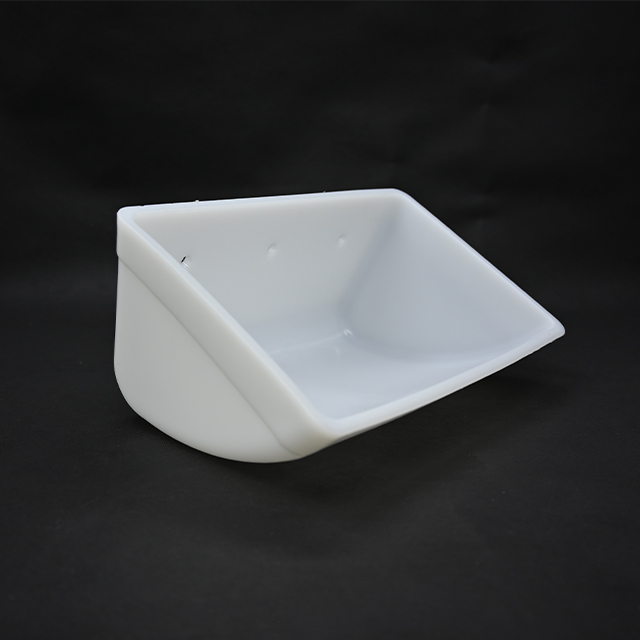

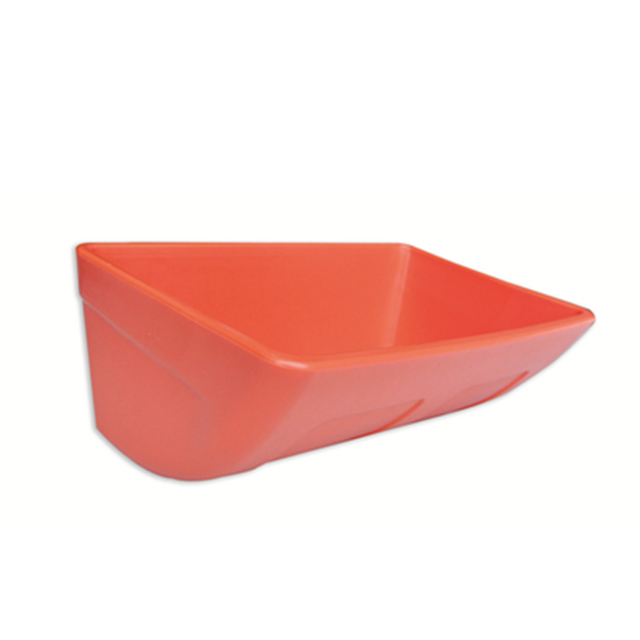

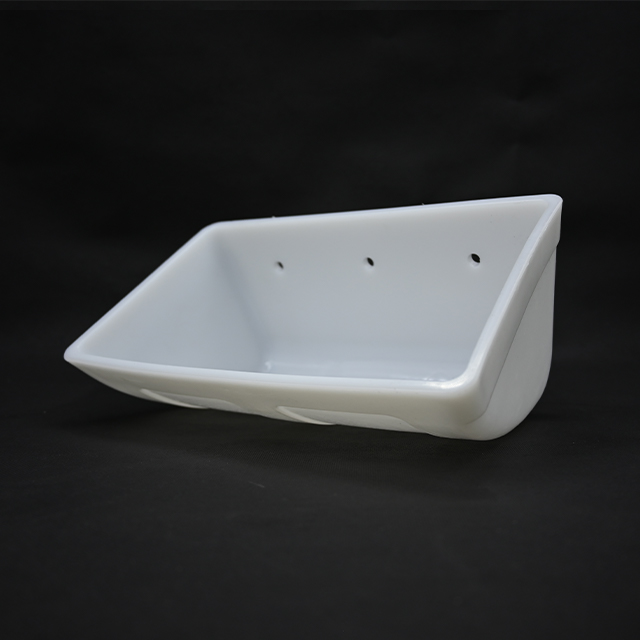

M Series Medium Deep type Bucket（HDPE & NYLON） 7
• Applicable to a broader range of speed and material;
• Recommended minimum bucket is winnowing pan "C" + 25 mm size, can be adjusted according to request of lifting capacity winnowing pan installation spacing;
• Suggest hoist speed 3.0 meters/seconds or less, can improve the nose wheel diameter size, due to throw food Angle change and adjusted;
• Recommended "- Y (Z) + 10% volume as available capacity of the engineering design.
 |  |  |
 | ||
The data in the table is based on HDPE material, and the corresponding data of nylon material is +1.5% on this basis)
Model | Length A (mm) | Proj. B (mm) | Depth C (mm) | Height H (mm) | Distance D (mm) | Center E (mm) | Number of Holes | diameter d (mm) | Capacity (X-Y) (L) | Capacity (Z-Y)+10% (L) | Capacity (Z-Y) (L) |
M1312 | 135 | 120 | 85 | 60 | 25 | 70 | 2 | 7 | 0.8 | 0.55 | 0.5 |
M1814 | 185 | 153 | 113 | 78 | 30 | 100 | 2 | 9 | 1.8 | 1.54 | 1.4 |
M2316 | 248 | 173 | 130 | 101 | 35 | 120 | 2 | 9 | 3 | 1.53 | 2.3 |
M2816 | 286 | 175 | 130 | 94 | 35 | 80 | 3 | 9 | 3.5 | 2.97 | 2.7 |
M3017 | 300 | 183 | 115 | 84 | 35 | 90 | 3 | 9 | 3.8 | 3.4 | 3.1 |
M3021 | 317 | 228 | 170 | 120 | 45 | 100 | 3 | 11 | 6.5 | 5.5 | 5 |
M3317 | 322 | 175 | 115 | 96 | 35 | 80 | 4 | 9 | 3.9 | 3.69 | 3.35 |
M3321 | 340 | 230 | 170 | 103 | 45 | 120 | 3 | 11 | 7.1 | 5.94 | 5.4 |
M3721 | 382 | 230 | 170 | 123 | 45 | 90 | 4 | 11 | 8.1 | 6.82 | 6.2 |
M4221 | 430 | 230 | 170 | 118 | 45 | 90 | 5 | 11 | |||
M5121 | 518 | 230 | 172 | 118 | 45 | 100 | 5 | 11 | 10.76 | 9.46 | 8.6 |
