Type | Pattern Width A(mm) | Belt Width Range B(mm) | C(mm) | D(mm) | Pattern Distance L(mm) | Pattern Depth (mm) | Pattern Angle |

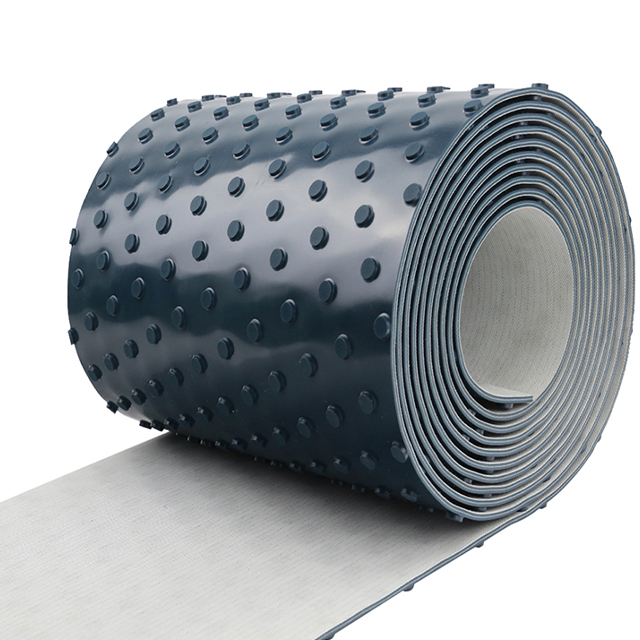

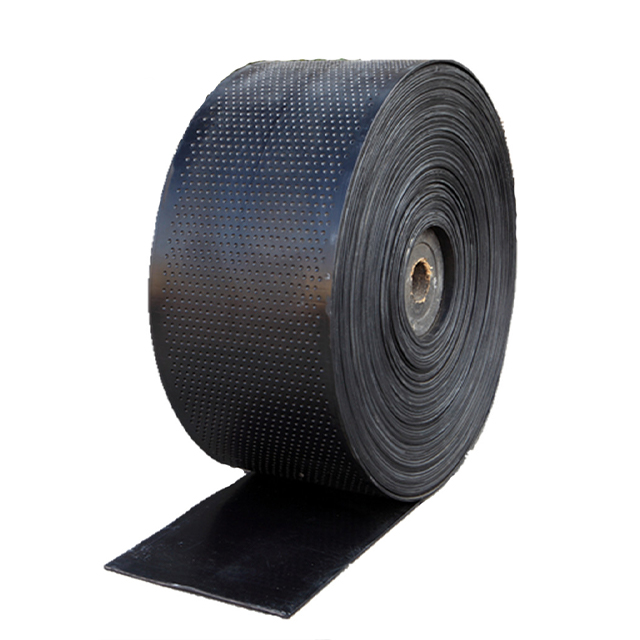

Dotted | 430 | 500~650 | 20 | 10 | 20 | 3 | / |
Grooved 1 | 460 | 500~900 | 20 | / | 40 | 2.5 | 120 |
Grooved 2 | 580 | 650~900 | 20 | / | 40 | 2.5 | 120 |
Grooved 3 | 750 | 800~900 | 25 | / | 55 | 2.5 | 120 |
Cross Convex 1 | 450 | 500~900 | 25 | / | 300 | 6 | 120 |
Cross Convex 2 | 600 | 650~900 | 25 | / | 300 | 6 | 120 |

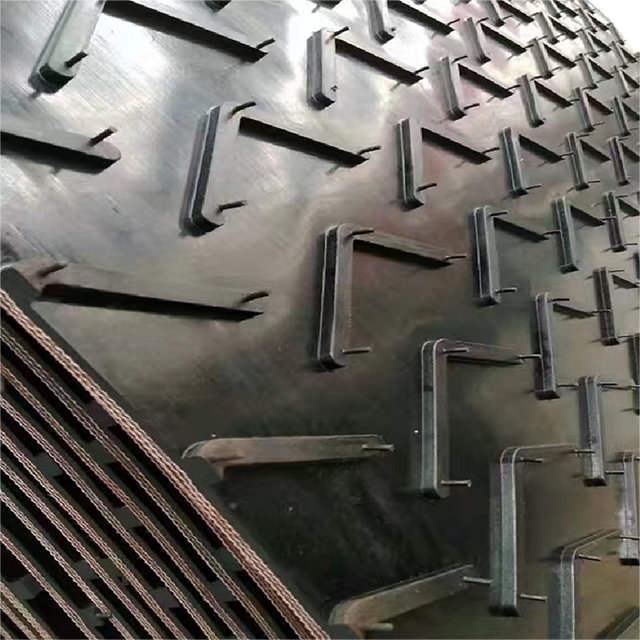

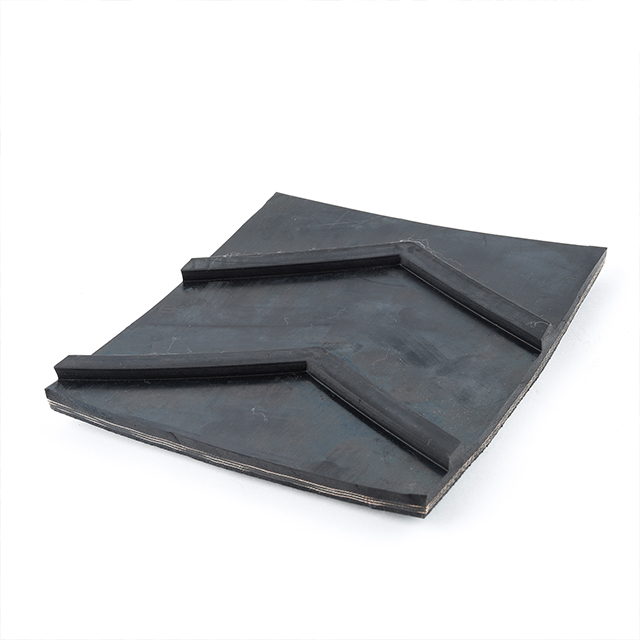

Chevron 1 | 700 | 750~1000 | 40 | 30 | 300 | 18 | 120 |
Chevron 2 | 900 | 950~1200 | 40 | 30 | 300 | 18 | 120 |
